Swapping VR+ and sensor shield to get a spark!?

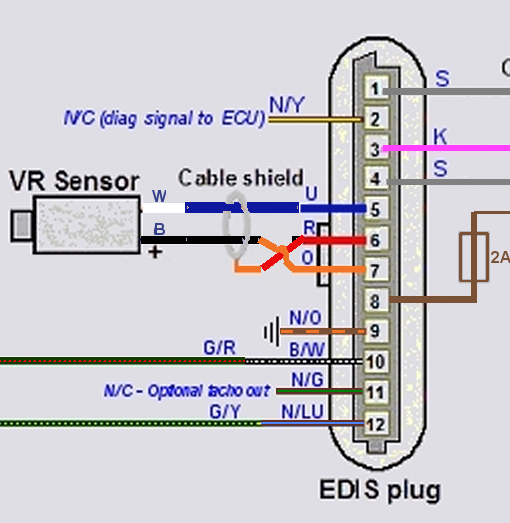

Can anyone explain why we've had to cross over the wires between the VR sensor shield and the VR+ output in order to get a spark from the EDIS? (the VR- is unaffected, still goes to pin 5)
- Attachments
-
- swapped.png (191.75 KiB) Viewed 8170 times
Spitfire MKIV with Fiat 132 DOHC engine/box, not much room for a trigger wheel!
http://s192.photobucket.com/albums/z225 ... fitted.jpg
http://s192.photobucket.com/albums/z225 ... fitted.jpg
