Anyone using the alternator as a tach signal

Post by torkey »

So I got a diesel and get a tach signal is far from simple. My current tach uses a signal off of one of the alternator coils. Has anyone done the with Race Capture?
Top
torkey
Posts: 30
Joined: Tue Sep 22, 2015 3:09 am

picture of signal

Post by torkey »

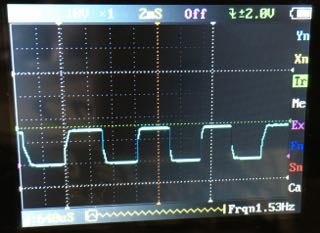

Here's a picture if the signal coming off the alternator. Seems like it should work but the RPM display is very erratic. Any ideas?
Attachments
signal picture
signal picture
Wave - 1.jpg (22.54 KiB) Viewed 906 times
