Celesco SM1 12" cable won't retract
Can I take it apart and reset the tensioner?
-
turtlesharkshooter
- Posts: 22
- Joined: Mon Apr 13, 2015 4:01 am
- Location: Orlando
- Contact:
Re: Celesco SM1 12" cable won't retract
I gambled and took the unit apart.turtlesharkshooter wrote:Can I take it apart and reset the tensioner?
- Attachments
-

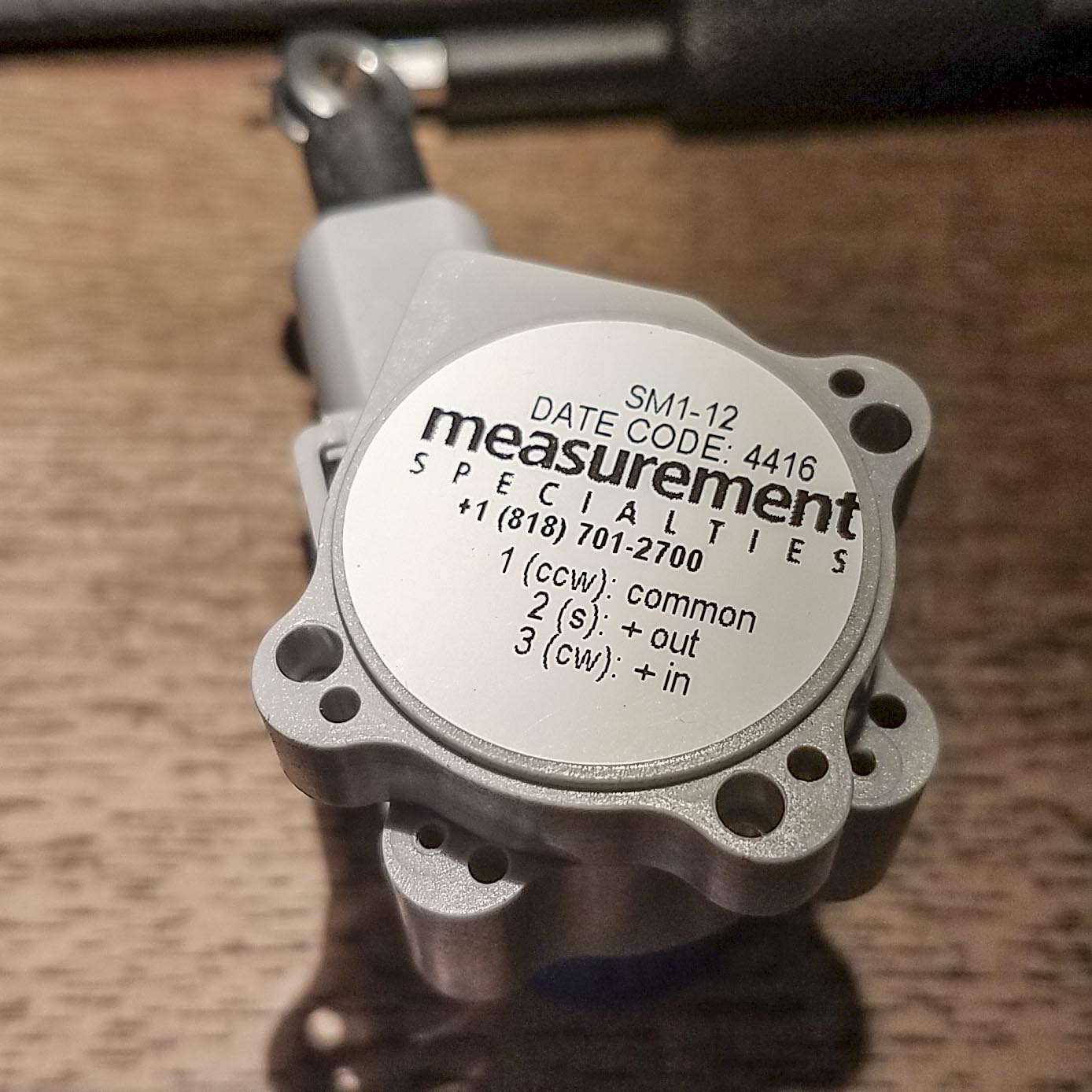

- #01 I'm talking about this guy. I somehow broke the tensioner.
- 01_SM1-12.jpg (174.53 KiB) Viewed 2737 times
-

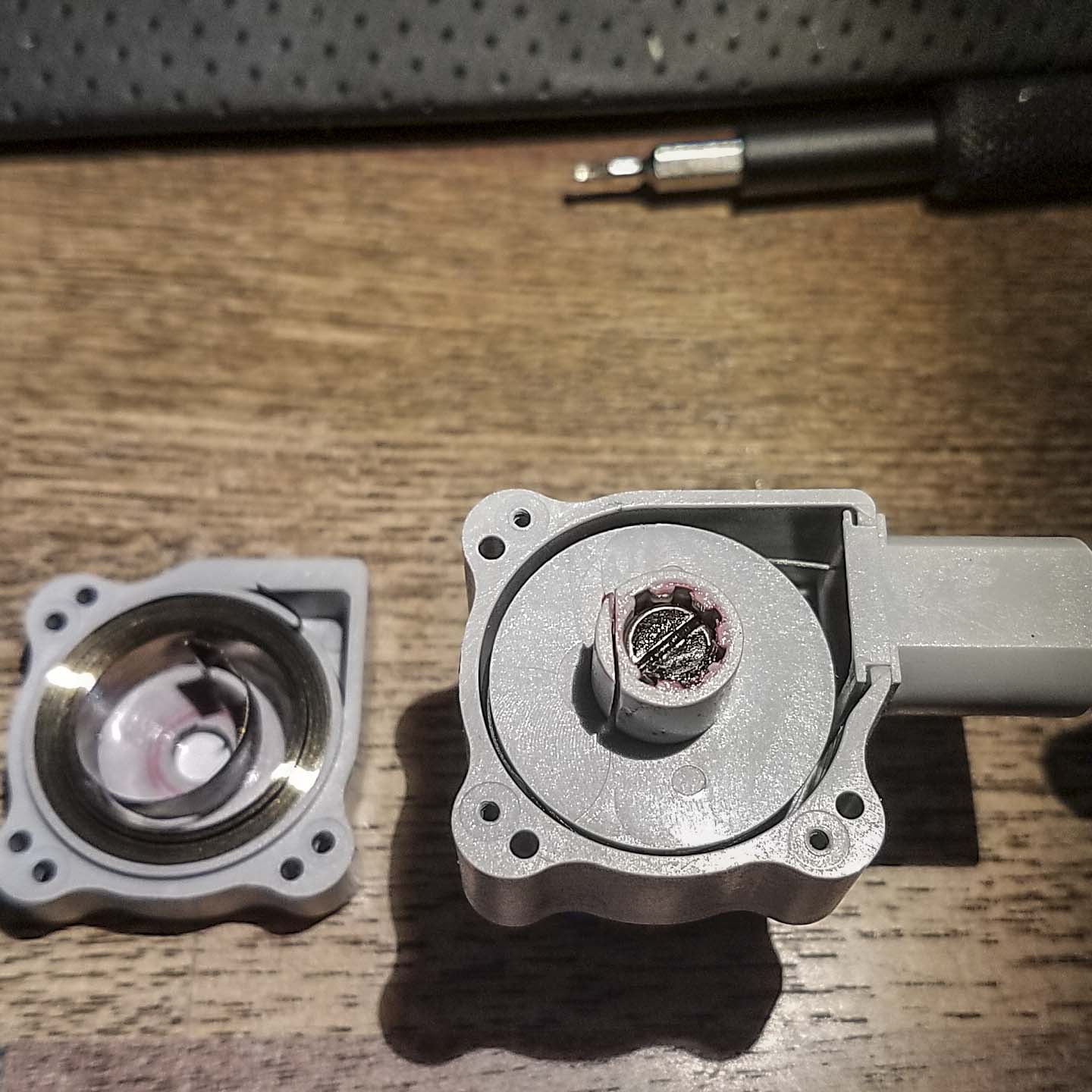

- #02 Used a T5 torx driver and this is what I saw once I split it in half.
- 02_SM1-12.jpg (168.21 KiB) Viewed 2737 times
-

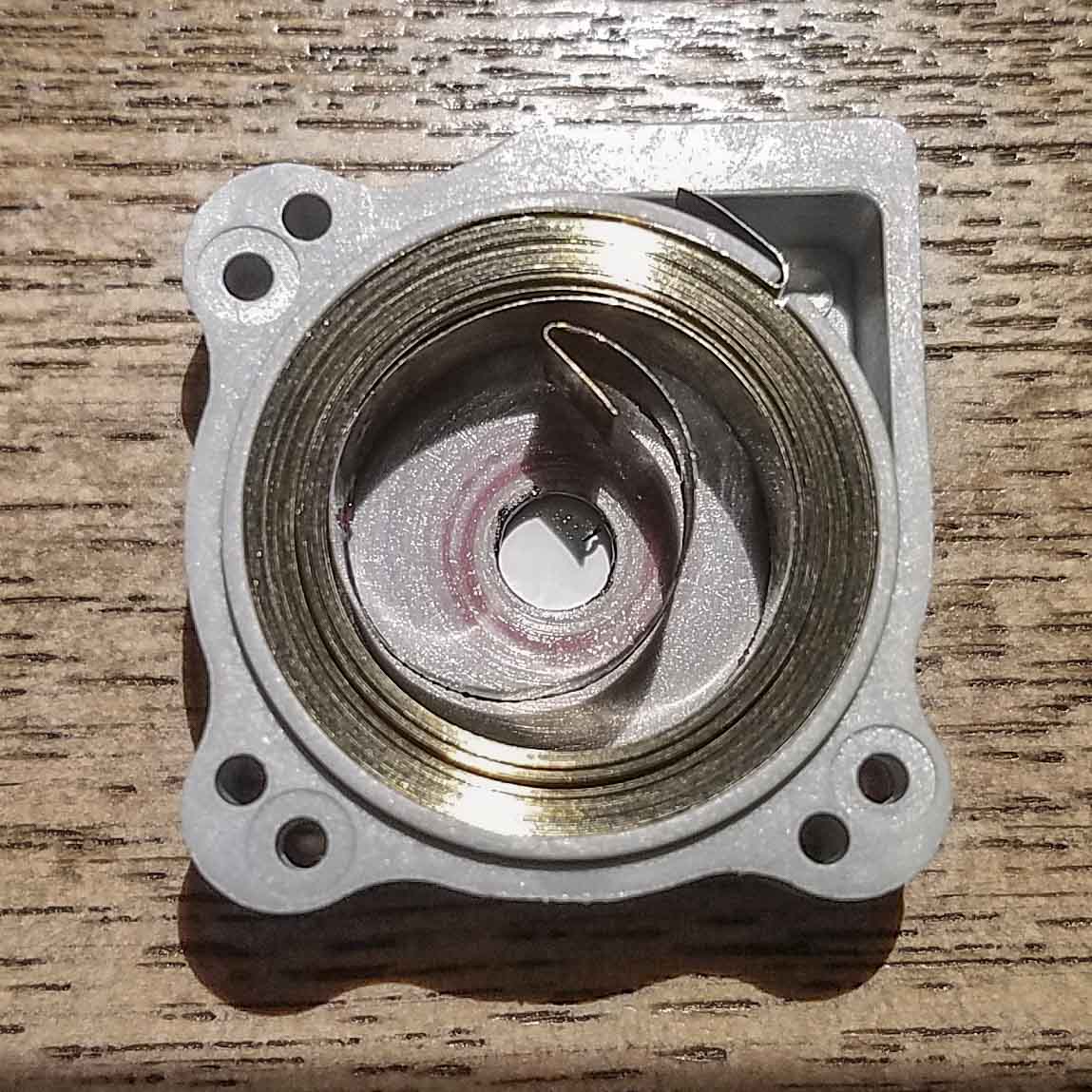

- #03 What happened is the spring somehow disconnected from the shaft.
- 03_SM1-12.jpg (146.28 KiB) Viewed 2737 times
Last edited by turtlesharkshooter on Tue Jan 03, 2017 9:36 pm, edited 2 times in total.
-
turtlesharkshooter
- Posts: 22
- Joined: Mon Apr 13, 2015 4:01 am
- Location: Orlando
- Contact:
Part II
Part II of the rebuild.
- Attachments
-
- #04 The goal was to get the end of the spring back into the slot. I lined them up like this and got the blade back into the slot. Once the 2 halves were sandwiched together, I rotated the top half till the cable retracted all the way up.
- 04_SM1-12.jpg (152.25 KiB) Viewed 2736 times
-
turtlesharkshooter
- Posts: 22
- Joined: Mon Apr 13, 2015 4:01 am
- Location: Orlando
- Contact:
Celesco SM1 12" cable won't retract
I was checking the range and felt the unit shimmy and spring release then no tension. It was very easy to fix. Ive gotten in 6 runs and unit is performing as designed.brentp wrote:Oh no! was it like that as new, or did something happen to prevent it from being able to retract?
