A90/A91 Toyota Supra PT-CAN BUS Install

Post by TYRFRYR »

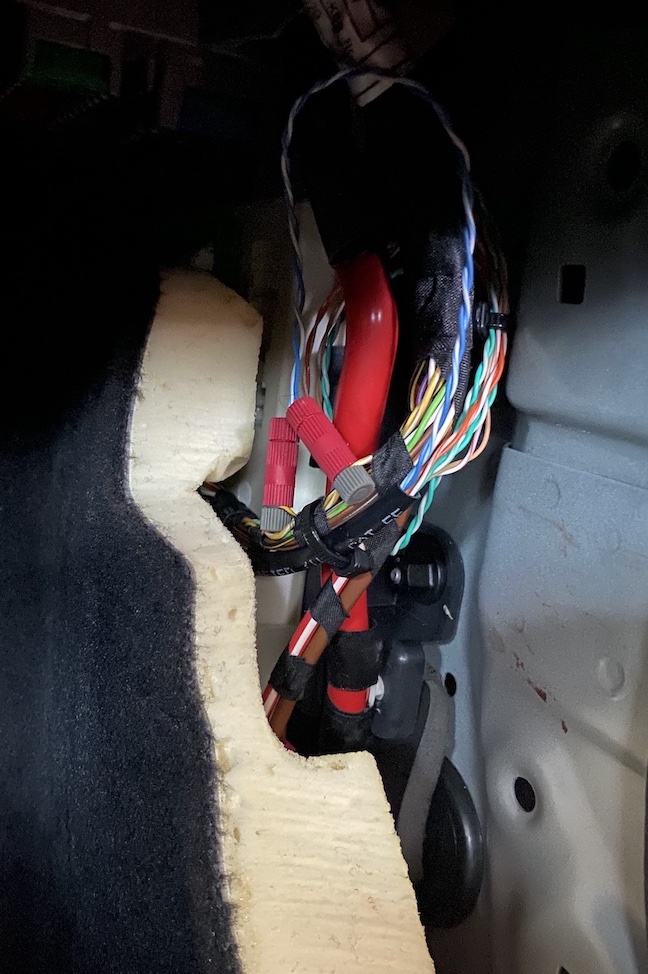

The Attached DME Pin Out document was used to locate the BMW PT-CAN Pair (Yellow/White - Yellow/Black). Having identified the PT-CAN bus, the wires were traced back into the cabin. They are readily accessible after removing the passenger footwell outer kick panel. The Picture below shows the PT-CAN bus connected to CAN 2 of a RaceCapture Track MK2 using a standard Cat5e Ethernet Cable.
DME Pin Out Document
Supra_Z4 Wiring and location views.pdf
(254.53 KiB) Downloaded 1709 times
EDIT——-
As for CAN Mapping, the BMW F87 presets seemed to work well, but after digging and logging more of the CAN packets, I discovered that they quite work out. I’m working on updating the CAN Mappings and should have a preset to publish here in a couple of days.
Last edited by TYRFRYR on Thu Oct 14, 2021 9:46 pm, edited 2 times in total.

brentp
Site Admin
Posts: 6282
Joined: Wed Jan 24, 2007 6:36 am

Re: A90/A91 Toyota Supra PT-CAN BUS Install

Post by brentp »

Thanks for the update! Not all vehicles are obvious for their CAN bus location, so this will be helpful.
Brent Picasso
CEO and Founder, Autosport Labs
Facebook | Twitter

TYRFRYR
Posts: 5
Joined: Fri Oct 01, 2021 1:17 am
Contact:

Re: A90/A91 Toyota Supra PT-CAN BUS Install

Post by TYRFRYR »

So after some deep dives, I've mapped out all of the Supra supported OBDII PIDs as well as several CAN BUS IDs.

Fixed with firmware v.2.19.0
There are a couple of CAN BUS IDs that require LUA Script to process the 12 Bit unscaled integer data.

TPS:
Toyota Supra TPS CAN Bus Mapping.pdf

Engine and Gearbox Torque:
Toyota Supra Torque CAN Bus Mapping.pdf
OBDII and CAN Bus Mappings:


BMW CAN Bus Data


The CAN Presets and the required Script Preset are on Podium as Shared Presets.
Last edited by TYRFRYR on Mon Aug 28, 2023 7:54 pm, edited 1 time in total.

TYRFRYR
Posts: 5
Joined: Fri Oct 01, 2021 1:17 am
Contact:

Re: A90/A91 Toyota Supra PT-CAN BUS Install

Post by TYRFRYR »

Great News!! We've decoded the OBD-II Service 0x22 message structure to access BMW Enhanced PIDs!! This greatly extends the data we can log from the DME. So far, we have the DME PIDs for the B48, B58 and S55. We're actively working on other ECUs and will be updating the ECU PID maps as we decode them.

There is a BMW CAN Bus data write up posted here: The SECRET Ingredient!

We're currently testing a Lua script that will allow you to retrieve BMW Enhanced PID data!! Once the script has been tested, we'll post it to the website as well as upload it to RaceCapture as a scripting preset!!

Enjoy!!!

brentp
Site Admin
Posts: 6282
Joined: Wed Jan 24, 2007 6:36 am

Re: A90/A91 Toyota Supra PT-CAN BUS Install

Post by brentp »

Awesome, let us know and we'll share it with the rest of the community!
Brent Picasso
CEO and Founder, Autosport Labs
Facebook | Twitter

DotekiAuto
Posts: 1
Joined: Tue Oct 03, 2023 9:56 pm

Re: A90/A91 Toyota Supra PT-CAN BUS Install

Post by DotekiAuto »

Hello,

Do you have the DBC file for this? Running some standalone stuff. I also emailed you regarding this. Hope to get a response soon. Good info.

Many thanks,

Rich

brentp
Site Admin
Posts: 6282
Joined: Wed Jan 24, 2007 6:36 am

Re: A90/A91 Toyota Supra PT-CAN BUS Install

Post by brentp »

Hi, when using RaceCapture you can simply use the preset available in the application, no need to import the DBC file.
Brent Picasso
CEO and Founder, Autosport Labs
Facebook | Twitter
