Finding out which wire is which on a TPS ?

Patriq · Post by **Patriq** » Fri Jan 25, 2008 3:02 pm

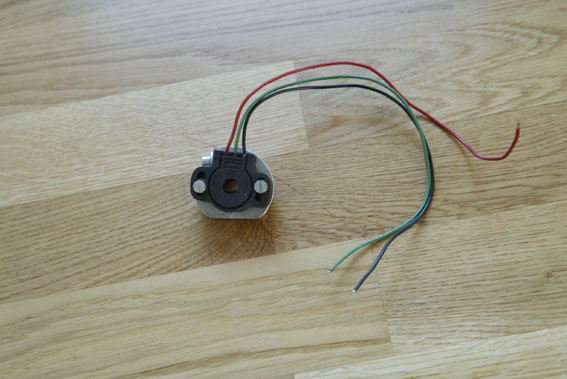

Is there an easy way to find out which wire is which on a TPS before I install it?

I ordered it from www.trigger-wheels.com
Maybe somebody else used the same TPS and know which colour is which ?

Patriq · Post by **Patriq** » Fri Jan 25, 2008 3:09 pm

Oops - sorry.

Now that I check their website, they've added info I needed.

They've stated:
Black - earth
Red - positive
Green - signal

So, is Positive equal to Vref, and Signal equal to TPS input ? Or is it the other way around ?

MartinM · Post by **MartinM** » Fri Jan 25, 2008 7:12 pm

Patriq wrote: So, is Positive equal to Vref, and Signal equal to TPS input ? Or is it the other way around ?

Exactly that....
