However, the mechanical aspects of the installation will be of interest to other XK-engine owners, and hopefully some might find inspiration and encouragement to deviate from conventional approaches.
You don't need a "kit" to do this, just a bit of common sense, and in my book this approach is better/neater than any other adaptation I've seen.
I wasn't a great fan of the conventional crank-nose fitting method, as I find it ugly and ungainly. It furthermore inhibits access to the crank nose bolt for crank-rotation, when removing the cams for shimming for example.
I also wanted a) to keep the car as original looking as possible, and b) preserve the distributor, having it as an easily-available backup. I know the MJ is super reliable but if I was keeping the distributor, it might as well work.
This ruled out mounting the coil-pack in place of the distributor.
I got the bits from Trigger-Wheels in the UK, ever helpful Chris, including what TW refer to as a 8-1/2" toothed-wheel that I could craft onto the back of the Australian crank-damper I've used for years, branded as ProRace.

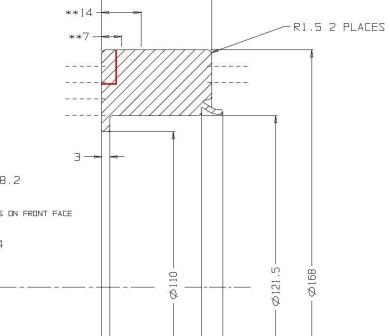

The manufacturers of the damper, refreshingly enthusiastic, were even kind enough to give me a sectioned drawing of their product to reassure me that there was enough meat in the damper at that point, before I set about machining it.
It is important to grasp that the toothed-wheel is therefore NOT solidly mounted to the crankshaft if you go down this route, as the outside of the damper is separated from its inner mounting core by a rubber bonding ; potentially, then, the torsional distortions between the outer and the inner could a) make the ignition inaccurate, b) make the air-gap between the toothed-wheel and the pick-up fluctuate.
I was reassured by both the damper manufacturer, who said these deformations would be minor, and Trigger-Wheels, who said that many OE systems used a similar approach, and thus felt sufficiently emboldened set about modifying the damper.
- IMG_2807S.jpg (29.9 KiB) Viewed 19406 times

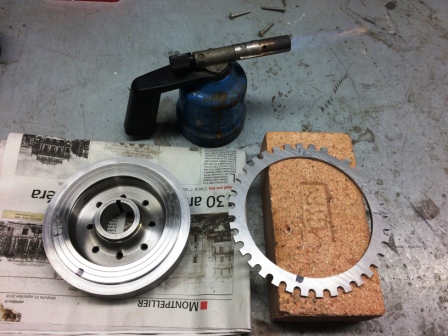

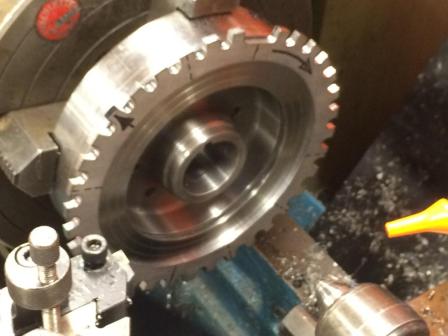

The toothed wheel needed no modification, and having machined the damper to give a slight interference-fit, I was able to shrink it on, and then drill and tap a pair of M5 holes across the interface, using grub screws to definitively retain the wheel on the damper.
- IMG_2814.JPG (85.47 KiB) Viewed 19406 times
The position of the toothed wheel in relation to the damper key-way, and thus the crank, is obviously critical, but there is lots of info out there about how to work this out, and as long as you do this and finish the wheel adaptation BEFORE you make the pick-up support structure, the latter can easily be made to an accuracy of 1° afterwards.

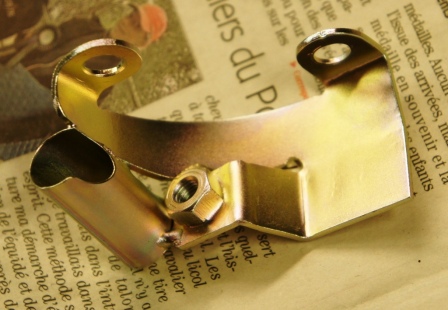

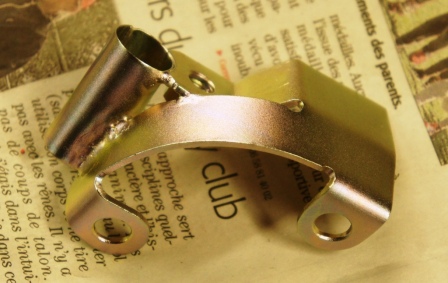

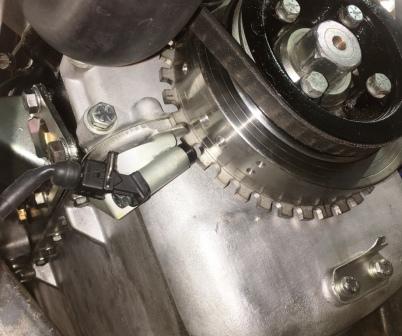

I made my support from one flat section of 15/10 mm sheet, suitably shaped, brazed, and plated, in the hope that every part looks like an original one rather than a hand-made adaptation.
- DSC07985.JPG (105.73 KiB) Viewed 19406 times

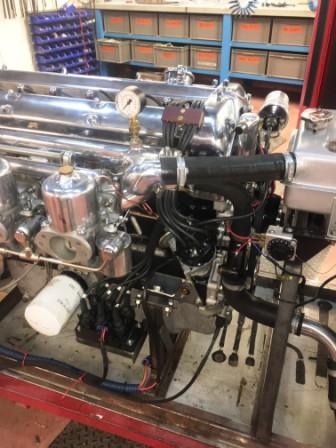

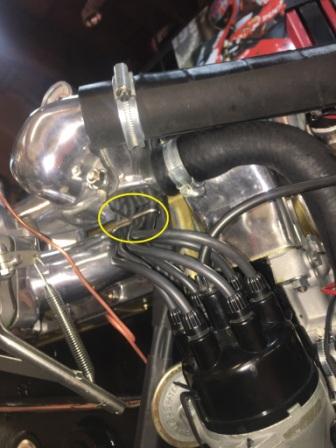

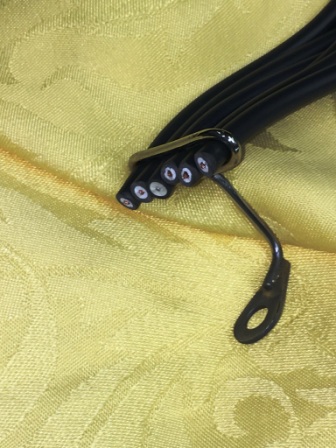

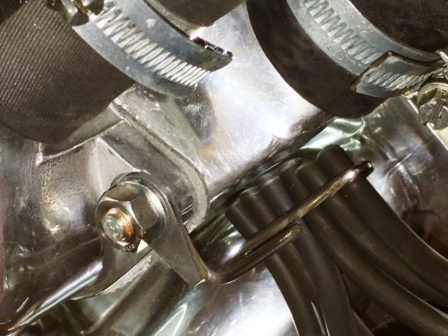

I intend to mount the coil down on the front frames, in approximately the position seen here on the test-bed, as to the untrained eye it will look - from above - as if the HT leads are coming from the distributor, whereas those leads are in fact dummies that end up it a suitable clip below the thermostat housing.
In this way, switching from the MegaJolt to the distributor just requires a spare cap with HT leads stored in the car boot, which takes less than 5 minutes.
